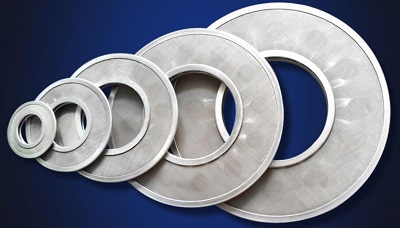

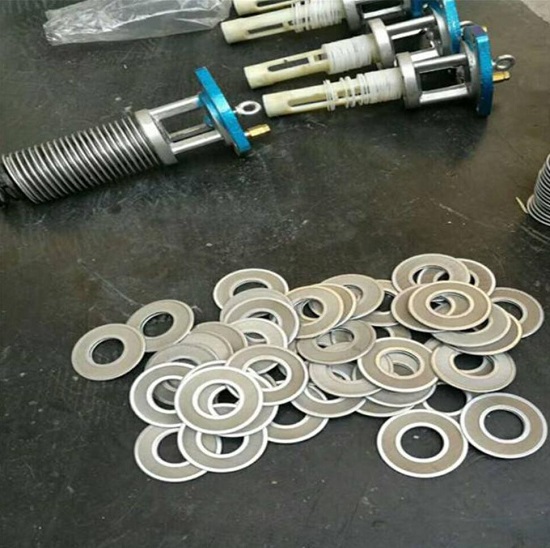

Pan screen filter disc include SPL and DPL types,the material of filter mesh is stainless steel wire mesh and brass wire mesh,the pan screen filter  disc can be easy cleaning and replace from the complete set.Mainly used for diesel engine lubricating system of vessels.The sizes are SPL15,SPL25,SPL32,SPL40,SPL50,SPL65,SPL80,SPL100,SPL125,SPL150,SPL200.

Model	DN( mm)	Inner Diameter(mm)	Outer Diameter(mm)	No./Set
SPL-15	15	20	40	2-30 pcs
SPL-25	25	30	65	2-20 pcs
SPL-32	32	30	65	2-30 pcs
SPL-40	40	40	95	2-34
SPL-50	50	60	125	2-22
SPL-65	65	60	125	2-34
SPL-80	80	70	155	2-40
SPL-100	100	70	155	4-40
SPL-125	125	90	175	4-40
SPL-150	150	90	175	6-40
SPL-200	200	90	175	8-40
