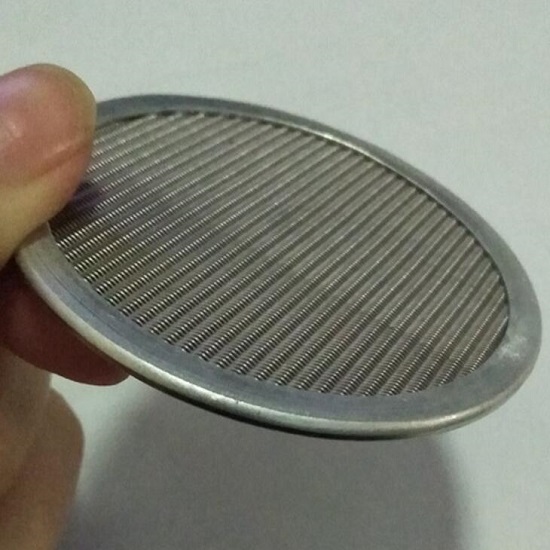

Edge ring wire mesh filter disc is made of stainless steel plate and multi-layers wire mesh,it is customized filters according to the special application for your product perfect fit,we have a full range mesh size stainless steel wire mesh in stocks.The multi-layers filter mesh disc is consist of coarse mesh and medium fine meshes,while coarse mesh is for surport puroose,the important if fine mesh and medium mesh for filtration.The edeg rign also can be aluminum and brass plate.
Edge mesh filter disc is mainly used for plastic pellets,oil filtration,spinning line,valves,tea,paper,textiles,cement and pipes.the process is punching the wire cloth into circle and square shaples,then make the stainless steel ring edged the wire mesh.Other special shapes of filter mesh can be customized as per clients need.Just provide the microns of the mesh disc you want,we can suggest and choose the suitable mesh size for filters.
Wire Mesh Material: SS304,SS304L,SS316,SS316L
Diameter: 4.5mm to 800mm

Mesh size	Wire Diameter(inch)
18 x 18	0.0170
24 x 24	0.0140
30 x 30	0.0100
40 x 40	0.0100
60 x 60	0.0075
80 x 80	0.0055
100 x 100	0.0045
150 x 150	0.0026
200 x 200	0.0021
250 x 250	0.0016
325 x 325	0.0014
